SKU: MS6053
Availability: in stock Many in stock Out of stock

MS6053 DIVAS Accessory for MS6050 Scan Tool

$799.00
  • Vendor: ANSED
  • Product Type: Diagnostic Tools
  • Barcode:
Overview
The 6053 DIVAS is the new accessory available for the MS6050 universal scanner - extending the range of diagnostic capabilities through a series of additional applications necessary for proper tune-up of power sports vehicles.




Features:
  • Synchronization of throttle valves on carburetor and fuel injected systems
  • Dynamic analysis of the manifold intake pressures
  • RPM reading
  • Synchronization procedures integrated with diagnostic functionalities of the engine control unit (idle speed control lock, TPS and/or self-adaptive parameter reset, analysis of fault code memory, verification of proper operating conditions, etc.)
  • 3 analog inputs for dynamic analysis and data acquisition of vehicle sensors
  • Built-in microphone

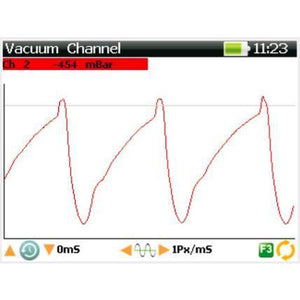

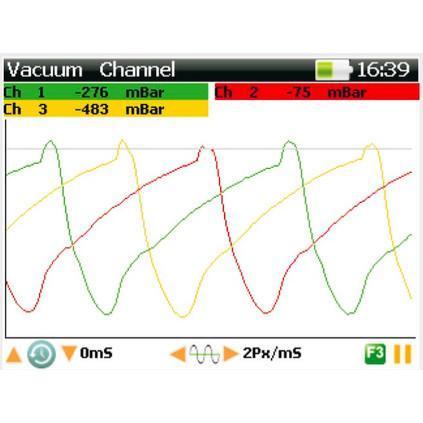

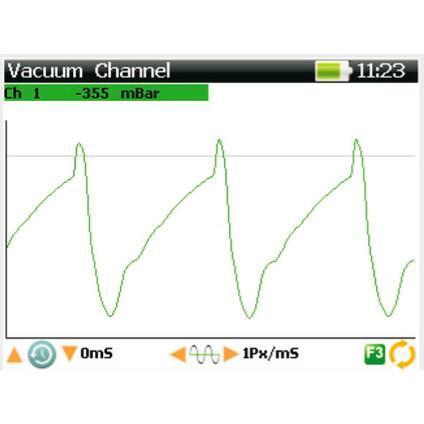

Using MS6053 DIVAS, you can synchronize the throttle valves according to the manufacturer's recommendations. Shown on the scanner's display, the detailed graphs present minimum, maximum, and average pressure values for each channel along with the real-time engine speed, thus allowing precise and intuitive operations. Once the perfect pressure alignment has been achieved, then green light indicator and the buzzer go off, alerting the user. If achieving the desired synchronization proves difficult, then the dynamic and simultaneous pressure analysis of each channel, using color graphs, allows the detection of sealing problems of valves, cylinders, or ducts.


Integration of synchronization with diagnostic capabilities, with no additional equipment needed, allows to correctly set up a bike's idle speed control lock or to carry out intervention with all the resets according to the manufacturer's service manual.


Using the connection to vehicle's sensors, 3 analog inputs allow the real-time monitoring and storing of acquired data, thus extending the diagnostic potential of the tool. The user is empowered with a range of capabilities - from dynamic display to comparative analysis of analog inputs and values indicated by the control unit - achieving high-speed acquisition and subsequent processing of the monitored signals.

The built-in microphone allows acoustic analysis of a vehicle, which is particularly useful when working with a silencer.
Technical Features
Pressure sensor channels n. 4

Pressure sensor range



from 15 kPa to 115 kPa

(from 150 mBar to 1150 mBar)

Pressure sensor accuracy +- 1 mBar
Pressure sensor sampling speed 1 ms
Selectable pressure measuring units mBar, kPa, cmHg, A/D steps
Analog/Digital input (AUX) 0-5 Volt and 0-12 Volt
Sensor power supply outut (AUX) 5-12 Volt stabilized
Engine speed range from 400 to 6000 rpm


Built-in microphone



Sound pressure reading

in decibels (dB)

Power supply



Self-powered by

MS6050 internal battery

Additional features Atmospheric pressure display
  Pressure sensor self-calibration
  Multi-language support
  Save and replay test

Hoses 4x7 mt 6 (chemical resistant)


5x8 mt 0.5

(silicon / heat resistant)

Adapters n. 4 M5 connector
  n. 4 M6 connector
  n. 1 T-piece
